Description

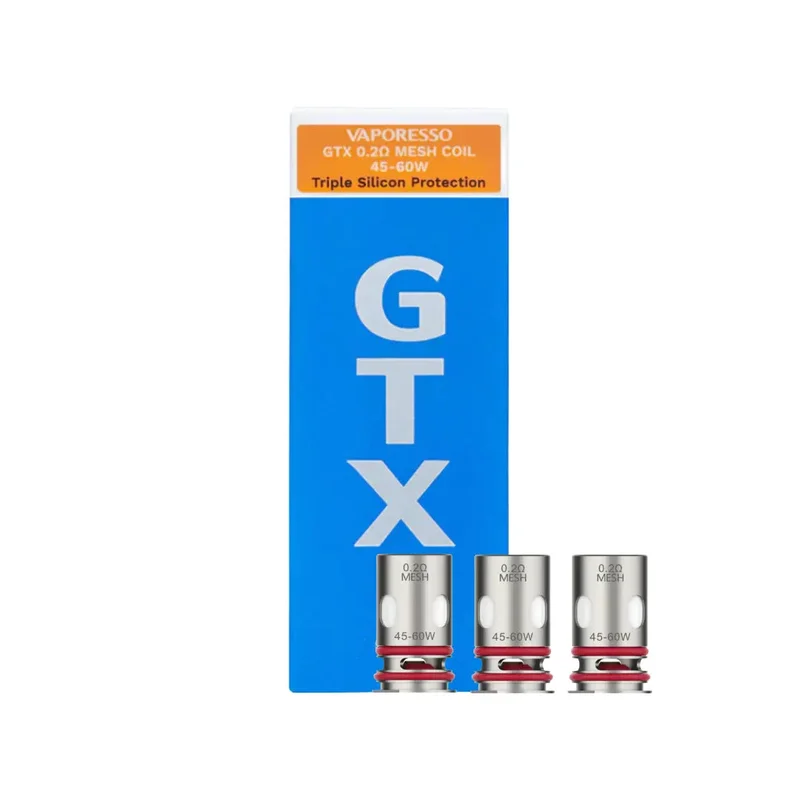

Vaporesso GTX Replacement Mesh Coils

Vaporesso GTX coils are press-fit mesh replacement coils that drop into a broad set of Vaporesso pod kits, sub-ohm tanks and pod-mod hybrids. The GTX range spans ten resistance options from 0.15 ohm up to 1.2 ohm, with standard mesh and dual mesh types on the lower-ohm side. Each pack contains five coils, making GTX one of the deepest-stocked platforms in the wider Vaporesso replacement coil collection.

Seven options use a single mesh strip (0.15 ohm to 1.2 ohm) covering DTL, RDL and MTL vaping. Three low-ohm resistances (0.15, 0.2 and 0.3 ohm) are also sold as dual mesh.

The dual mesh design layers two strips side by side to lift flavour and vapour at the same wattage. Triple silicone O-rings cut leaking, while flax fibre and cotton wicking soaks e-liquid faster than cotton alone.

Key Features

• Ten GTX Resistance Options 0.15 ohm to 1.2 ohm covering DTL, RDL and MTL draws.
• Standard Mesh and Dual Mesh GTX Coils dual mesh available in 0.15, 0.2 and 0.3 ohm.
• Dual Mesh Flavour Lift two strips push richer flavour and bigger clouds at the same resistance.
• Triple Silicone O-Rings tighter seal at the base reduces pod and tank leaking.
• Flax Fibre and Cotton Wicking faster e-liquid soak helps cut dry hits.
• Press-Fit Fitment push the coil straight into the base, no threading or screwing.
• 5 Coils Per Pack sold as a 5-pack across every resistance.

GTX Coil Compatibility

Vaporesso GTX coils fit a broad set of Vaporesso pod kits, sub-ohm tanks and pod-mod hybrids that share the GTX coil socket. If your kit takes a GTX coil, every resistance listed presses straight in without an adapter.

Currently Stocked Compatible Kits

• Vaporesso GTX One Pro
• Vaporesso Armour G
• Vaporesso Armour GS
• Vaporesso Luxe X3
• Vaporesso Luxe XR Max 2

Compatible Tanks and Pods

GTX coils also fit the xTank T sub-ohm tank, the Luxe XR replacement pods, and the Armour G/GS pod cartridges. The xTank T ships on the GTX One Pro kit. The newer GTX-2 versions (marked on the packaging) have improved O-ring seals but fit the exact same kits and tanks.

If your kit uses a different platform, the GTi coil, GTR coil and GT Mesh coil ranges cover the remaining Vaporesso fitments.

Important, Per-Resistance Restrictions

A handful of kits on the GTX platform only accept part of the resistance range. Check before you order:

• GTX One kit and GTX Tank 18 do NOT accept the 0.15, 0.2 or 0.3 ohm coils.
• GTX Go 40 pod kits do NOT accept the 0.15 or 0.2 ohm coils.
• PM40 kits only accept the 0.6, 0.8 and 1.2 ohm coils.

Important Compatibility Notes

GTX coils do NOT fit the COREX pod platform used on the Vaporesso XROS family or the Luxe X COREX 2.0 pods. Those use an integrated COREX coil set into the pod, not a removable coil head. If your pod kit has the coil sealed into the pod body, you are on the COREX platform and need replacement pods rather than replacement coils.

Standard Mesh and Dual Mesh GTX Coils

Three resistances (0.15, 0.2 and 0.3 ohm) are sold as both standard mesh and dual mesh. The remaining seven resistances are standard mesh only.

Type	Standard Mesh	Dual Mesh
Mesh Layers	One	Two
Resistances	All ten (0.15-1.2 ohm)	Three (0.15, 0.2, 0.3 ohm)
Vaping Style	DTL, RDL, MTL	DTL only
E-Liquid	Nic salts, 50/50, high VG	High VG only

Dual mesh delivers richer flavour and more vapour at the same resistance because the two layers heat more e-liquid at once. If you vape DTL at 0.2 ohm and want a bit more from every hit, the dual mesh is the upgrade. Standard mesh still pulls plenty of flavour and tends to last a touch longer on the same bottle.

GTX Coil Resistance Guide

DTL Coils (0.15 ohm to 0.3 ohm)

Coil	Resistance	Wattage	E-Liquid
GTX Mesh	0.15 ohm	60-75W	High VG, max VG
GTX Mesh	0.2 ohm	45-60W	High VG, shortfills
GTX Mesh	0.3 ohm	32-45W	High VG, shortfills
GTX Dual Mesh	0.15 ohm	60-75W	High VG, max VG
GTX Dual Mesh	0.2 ohm	45-60W	High VG, shortfills
GTX Dual Mesh	0.3 ohm	32-45W	High VG, shortfills

The low-resistance GTX coils (0.15-0.3 ohm) use NiCr mesh for fast ramp-up. The 0.2 ohm is the most popular GTX resistance. It sits in the middle of the DTL range and pairs well with 70/30 or max VG shortfill e-liquids at 45-60W.

RDL Coils (0.4 ohm to 0.6 ohm)

Coil	Resistance	Wattage	E-Liquid
GTX Mesh	0.4 ohm	26-32W	50/50, high VG
GTX Mesh	0.6 ohm	20-26W	Nic salts, 50/50

RDL coils use FeCrAl mesh. The 0.4 ohm sits between DTL and MTL, loose enough for a relaxed draw but tight enough for nic salts at 20mg if you prefer a warmer vape. The 0.6 ohm vapes cooler and suits nic salts or 50/50 e-liquids.

MTL Coils (0.8 ohm to 1.2 ohm)

Coil	Resistance	Wattage	E-Liquid
GTX Mesh	0.8 ohm	12-16W	Nic salts, 50/50
GTX Mesh	1.2 ohm	7-11W	Nic salts, high PG

MTL coils also use FeCrAl mesh. The 1.2 ohm is the tightest draw in the GTX range, closest to a cigarette pull, and best with nic salt e-liquids at 10mg or 20mg. The 0.8 ohm opens the draw a touch for vapers who want MTL with a little more air.

GTX Coil Specifications

Spec	Detail
Coil Types	Standard mesh, dual mesh
Resistances	0.15, 0.2, 0.3, 0.4, 0.6, 0.8, 1.2 ohm
Dual Mesh Options	0.15, 0.2, 0.3 ohm
Wattage Range	7-75W (varies by resistance)
Mesh Material	NiCr (low ohm), FeCrAl (high ohm)
Wicking	Flax fibre and cotton
Leak Protection	Triple silicone O-rings
Fitment	Press-fit, no threading
Vaping Styles	DTL, RDL, MTL
E-Liquid	Nic salts, 50/50, high VG
Pack Size	5 coils

What’s in the Box

• 5x Vaporesso GTX Replacement Coils (in your chosen resistance)
